APPLICATION

  • Country and local roads
  • Factory roads
  • Park roads
  • Car park roads
  • Residential roads
  • Villas and gardens

COMPETITIVE ADVANTAGES

  • Solar LED light powered by solar panel and battery
  • Brand of LED chip: Philips
  • Luminous efficiency for LED chip: 190 lm/W
  • Safety of solar battery: Grade A Lithium iron phosphate
  • Lifespan of solar battery: ≥1000 cycle
  • Solar controller: Intelligent management battery electricity

GENERAL PERFORMANCE

  • Solar panel: Mono-crystalline silicon
  • PIR sensor
  • Dimming: PIR intelligent control
  • Beam angle: 160°, 60°
  • IP protection: IP65



WARRANTY AND CERTIFICATES

3-years2   ul

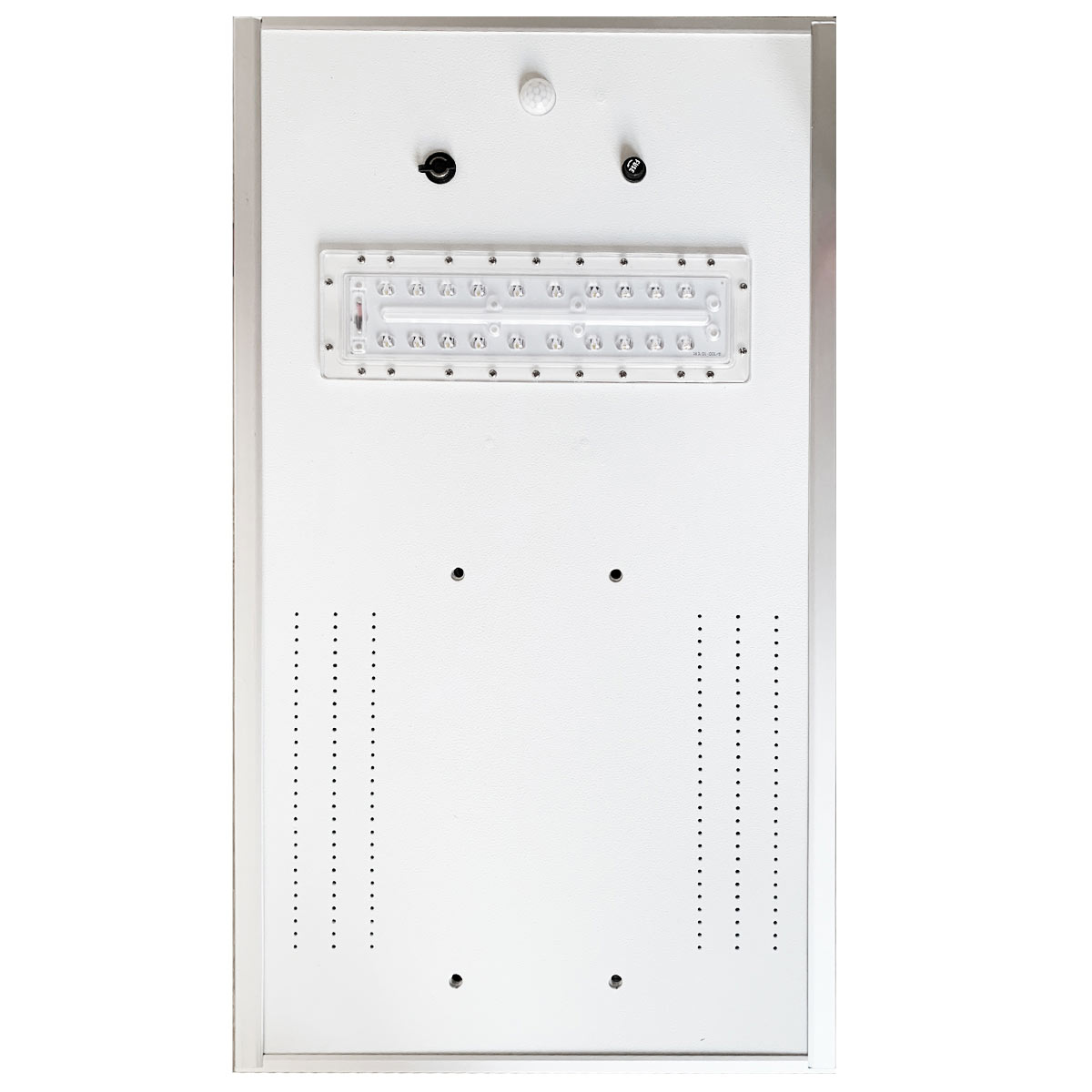

Model SEL 902 14W
Power 14 W
Brand of led chip Philips
Luminous efficiency for led chip 190 lm/W
Total luminous flux 2650 ± 5% lm
Luminous efficiency for luminaire 150 lm/W
Beam angle 150° × 60°
Correlated color temperature 4000 / 5700 K
Color rendering index 75 Ra
Life span of led chip 100000 hrs
Type of solar battery Lithium ion battery
Capacity of battery 12 V 33 Ah
Lifespan of battery ≥1000 cycle
Charging time 6 hrs
PIR sensor Yes
Dimming of brightness of luminaire 30% (PIR not activated) / 100% (PIR activated))

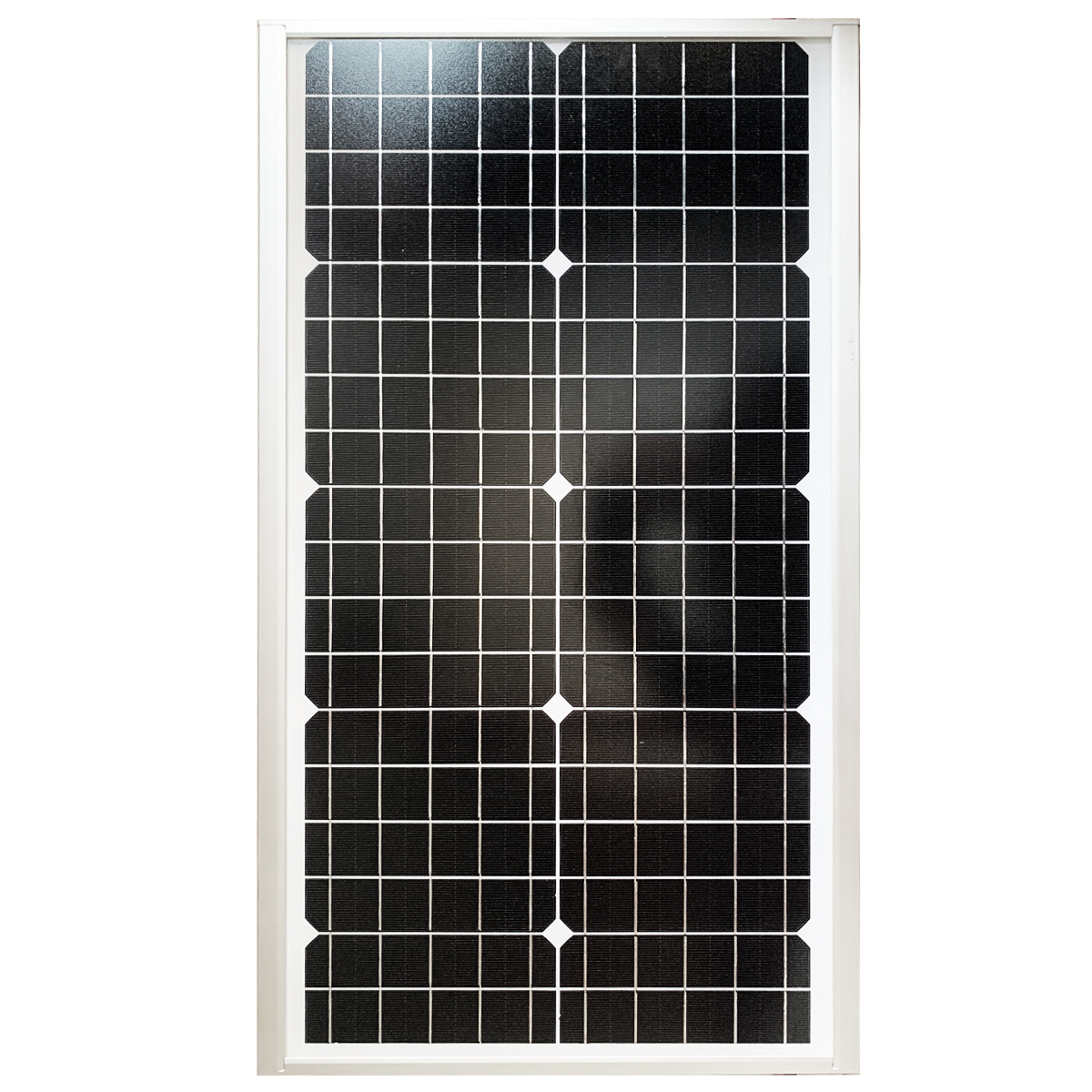

Monocrystalline silicon solar panel 18 V 40 Wp
HD camera /
Material of shell Aluminum alloy
Material of cover for led PC
Working time per day 12 hrs
Average effective sunshine time 3.5 hrs/day
Continuous rainy days 4 days
Working temperature -10°C~+55℃
IP protection IP65
Dimensions 660 × 377 × 45 mm
Weight 13.5 kg
Installation ⌀60 mm
Recommended mounting height 3 – 5 m
